Products Current Location>> Home > Products

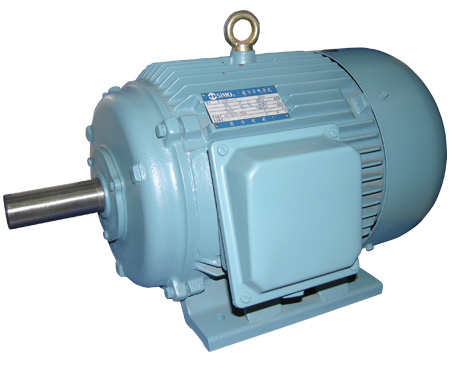

Y series motors

Time£ļ2012/04/14


Y series motors are totally enclosed fan cooling (TEFC) three phase squirrel cage induction motors. The motors are widely used in the field such as machine tools, pumps, blowers, compressors, etc.

Mounting dimension and rated output of the motors conform to IEC standard.

Base features as follow:
Rated voltage: 380V
Rated frequency: 50Hz
Protection degree: IP44
Cooling method: IC411
Insulation class: B
Ambient temperature: -15°ś°ę40°ś
Altitude: not exceed 1000 meters

Y Technical data       Download Technical data
